TM-FL2060-3000W dual platform

Project name

unit

parameter value

itinerary

mm


X-axis 6000; Y-axis 2000;

Z-axis 120



Maximum positioning speed

m/min

120

maximum acceleration

G

1.0

Mechanical positioning accuracy

mm/m

±0.03

repeatability

mm

±0.02

load

kg

average load 1250

gross weight of equipment

kg

6500

Inquiry
  • Information
  • Video
  • Related Products

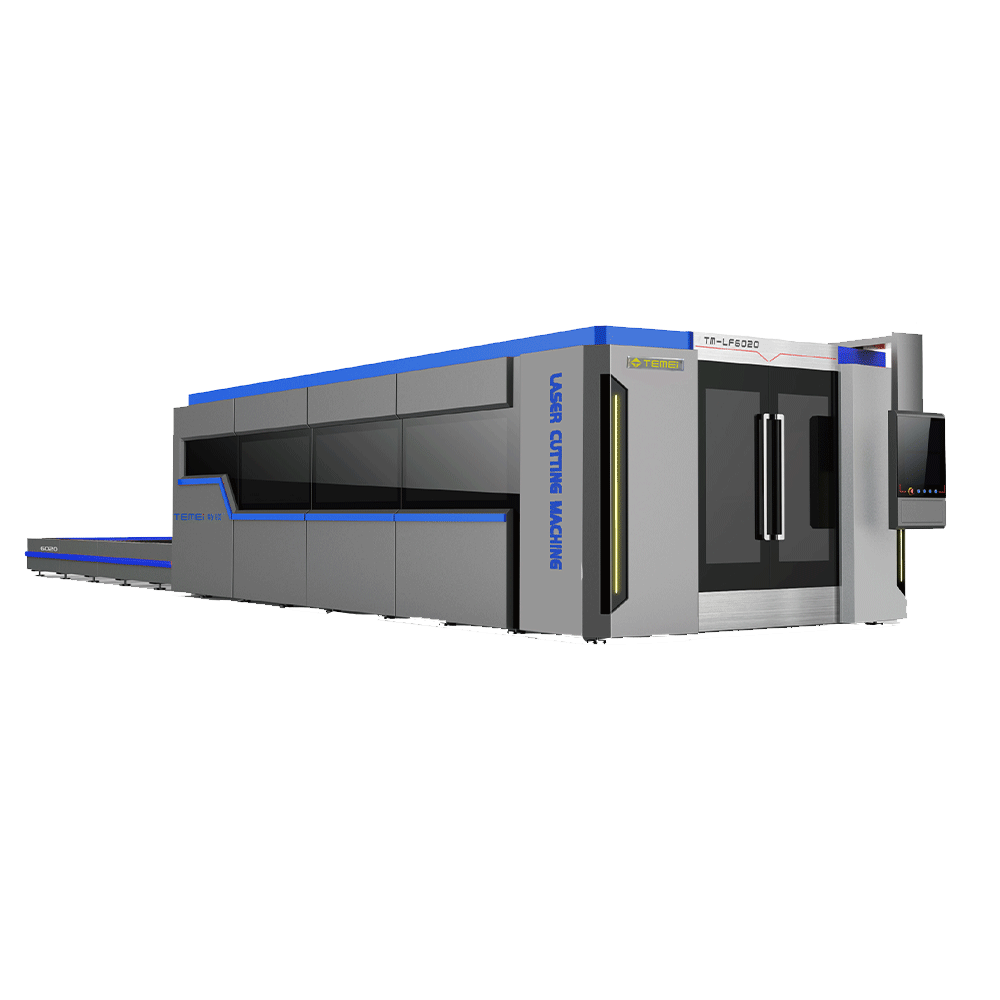

This machine is composed of base, beam, carriage, numerical control system, compressed air blowing and cooling system, etc. It is a gantry mobile structure.

The frame and beam are optimized by finite element design. All steel welding is annealed to eliminate residual stress. The overall rigidity is good and the accuracy is maintained well.

The front and rear of the beam and the left and right movement of the carriage are driven by servo motors, and the transmission of helical gears and rack pairs is characterized by high speed and strong load capacity.

Electrical components comply with international standards, safe and reliable, strong anti-interference ability.

The electrical control adopts Pechu numerical control system, bus control, no touchpoint operation, safe and reliable, long service life.

Please send a product inquiry and we will address your concerns as soon as possible.
