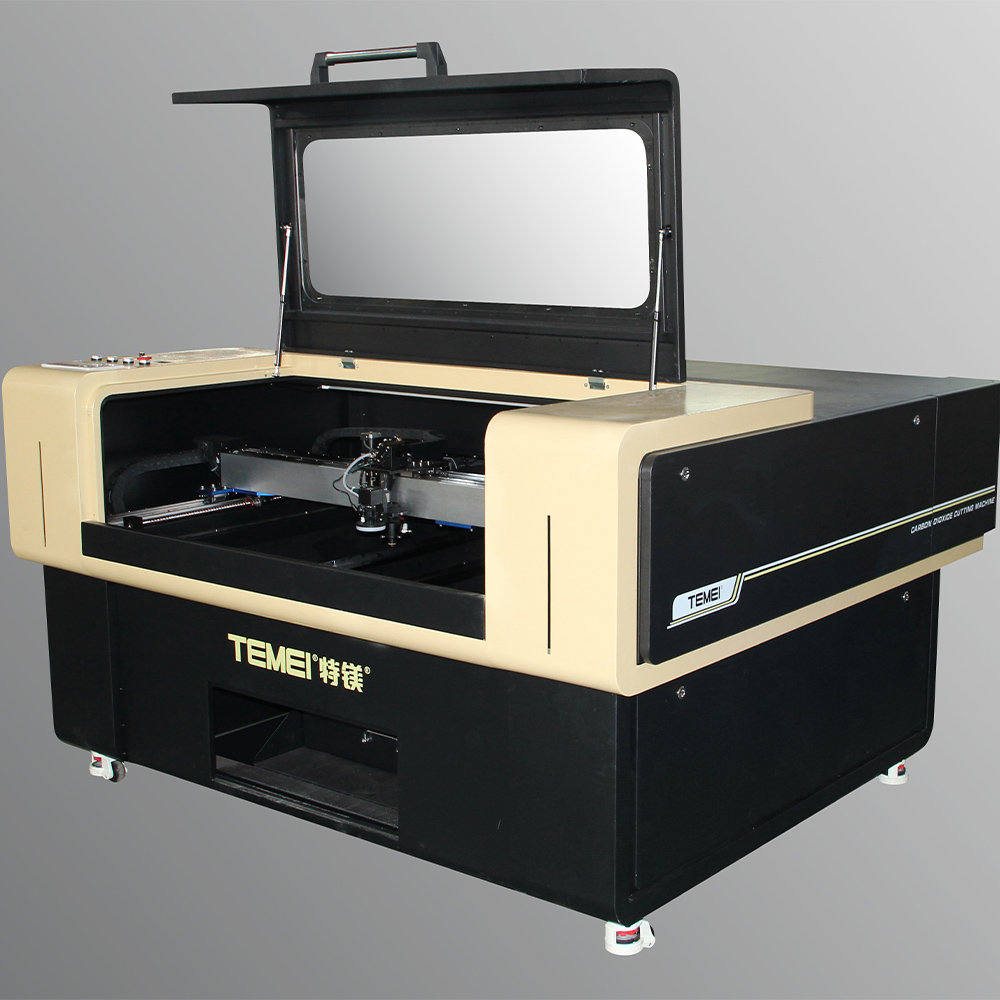

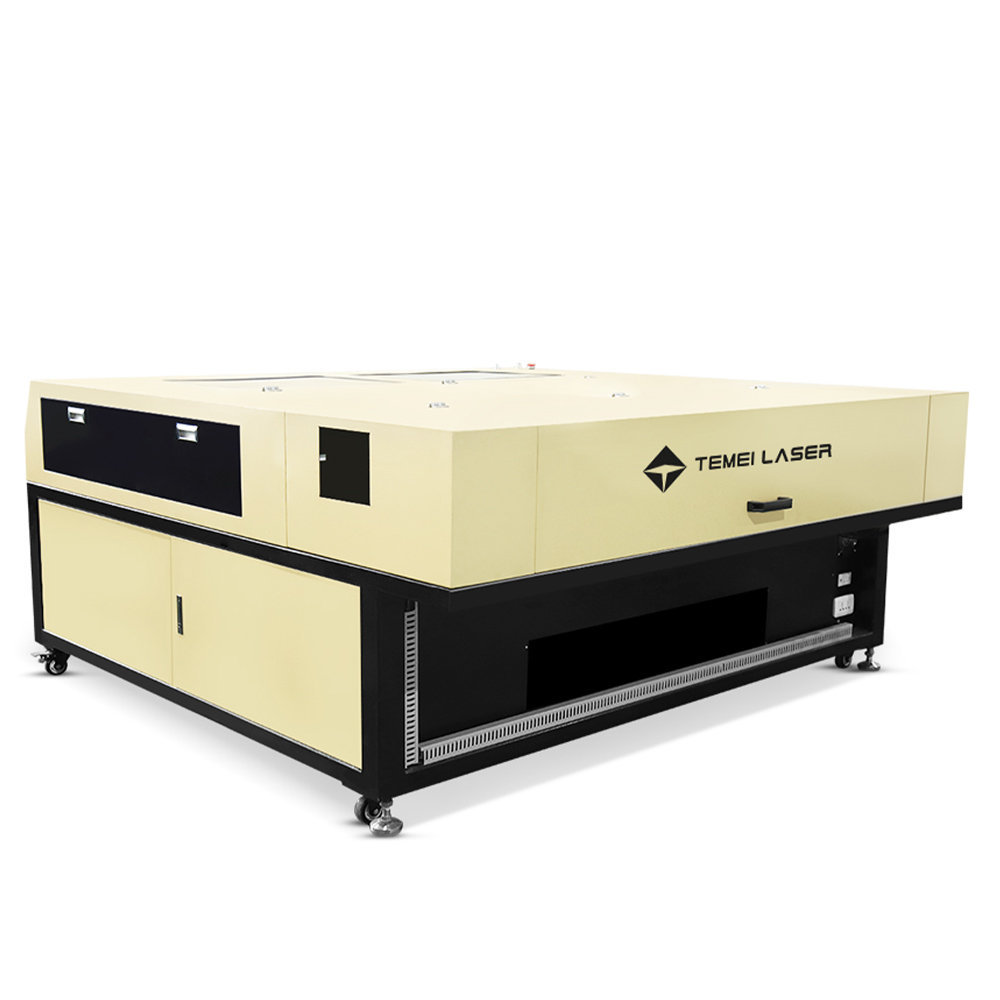

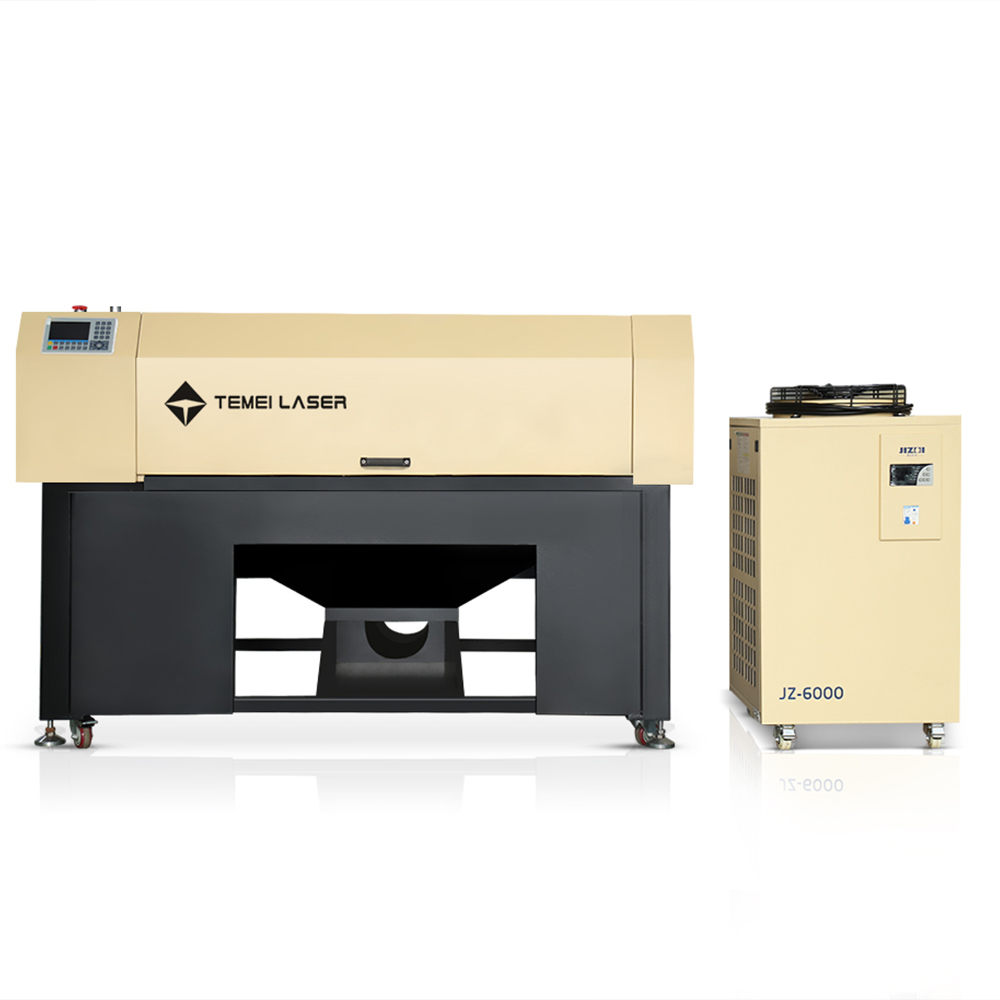

T9-L1390SCCD- Laser cutting machine
Working area :1250x900mm
Laser power :300w
Laser wavelength :10.6um
Moving parts: imported linear guide
Transmission parts: imported screw
Positioning accuracy :±0.05mm/300mm
Repeated positioning accuracy :±0.05mm
Applicable material: acrylic plate; Wooden board; High density plate; Fiberboard cloth, etc
Operating temperature :5-35℃
Working humidity :5%--95%
Power supply standard :220V/50Hz
Total power: Machine :2.5KVA(except laser system)
Support graphics formats: DXF, AI, PLT, DST, DSB
Optical path system: Flight optical path design
Cooling system: laser special cooling chiller
Auxiliary system: pumping system, blowing system
